1. Place the ball machine at the middle of the base line on the tennis court

2. Fill the ball machine hopper with a few tennis balls

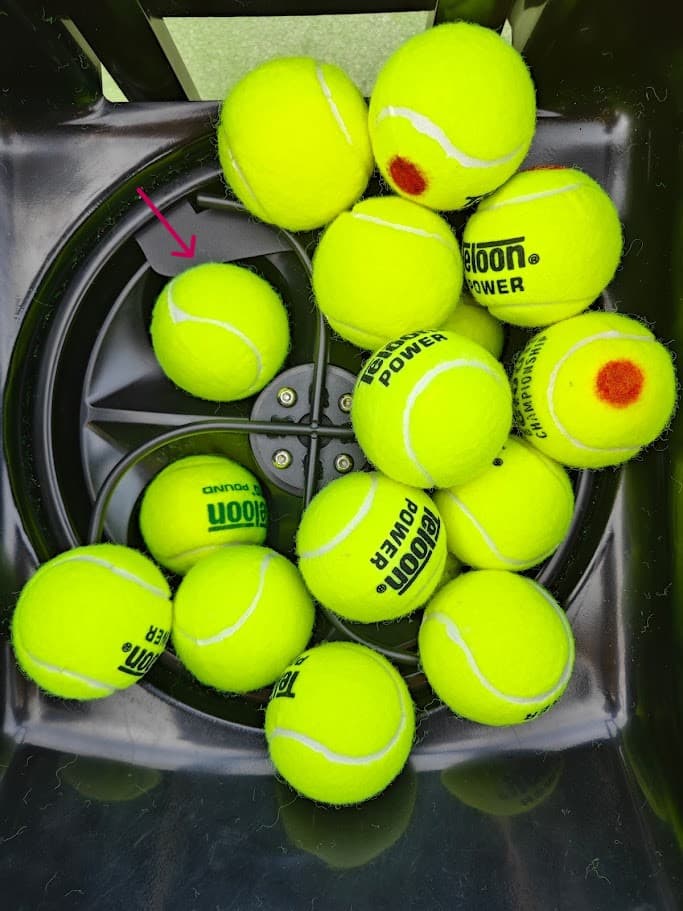

3. If there is a ball stuck against the plate, push it down or pull it out



1. Switch on the power button (up) located at the back of the ball machine

2. Switch on the remote control by long pressing the Start button for 3 seconds

3. Press the start/pause button to start/pause feeding the balls (Pause the ball machine in between the practice rounds to save battery power)

4. There is a maximum range for the remote control. The ball machine will make a beep when signal is received from the remote control. If you do not hear any sound, move closer to the ball machine and try again

1. Adjust the horizontal landing point by pressing the left/right buttons

2. Adjust the ball height by pressing the up/down buttons

• Press the speed button to receive flat balls, press up/down to adjust the flat ball speed





• Press the rotate up button to receive top spin balls, press the same button to increase the top spin ball speed

• Top spin speed cannot be reduced, switch to a different spin mode (flat or back) then back to start from the lowest top spin speed





• Press the rotate down button to receive back spin balls, press the same button to increase the back spin ball speed

• Back spin speed cannot be reduced, switch to a different spin mode (flat or top) then back to start from the lowest back spin speed





• Switching to top and back spin mode will always reset the speed to the lowest

6 different preprogramed drills to select from:



Fixed landing point



Random landing point



Cross landing point



Left & right landing point



Short & deep landing point



Lobs landing point

• Coming soon
